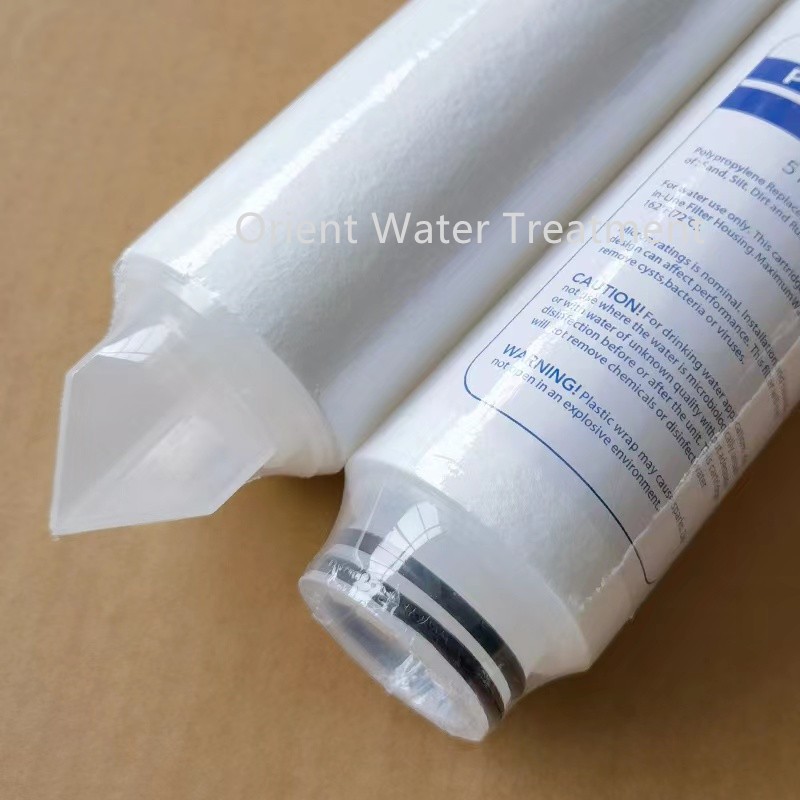

PP Spun Melt Blown Sediment Water Treatment Filter Cartridge

It is fused and intertwined of polypropylene resin without any chemical glues. The cartridge is glued at random to form 3D micro pore which will make the cartridge 3 layers with fibers in surface and inside.

Hot Sale OEM 1/5/10 Micron PP Spun Melt Blown Sediment Water Treatment Filter Cartridge For Food & Beverage




Specifications

Material of Constructions

Media

PP

End Cap

PP

Sealing

Silicone, EPDM, NBR,

Core

PP

Dimension

Outer Diameter

63mm , 115mm

Inner Diameter

28mm

Length

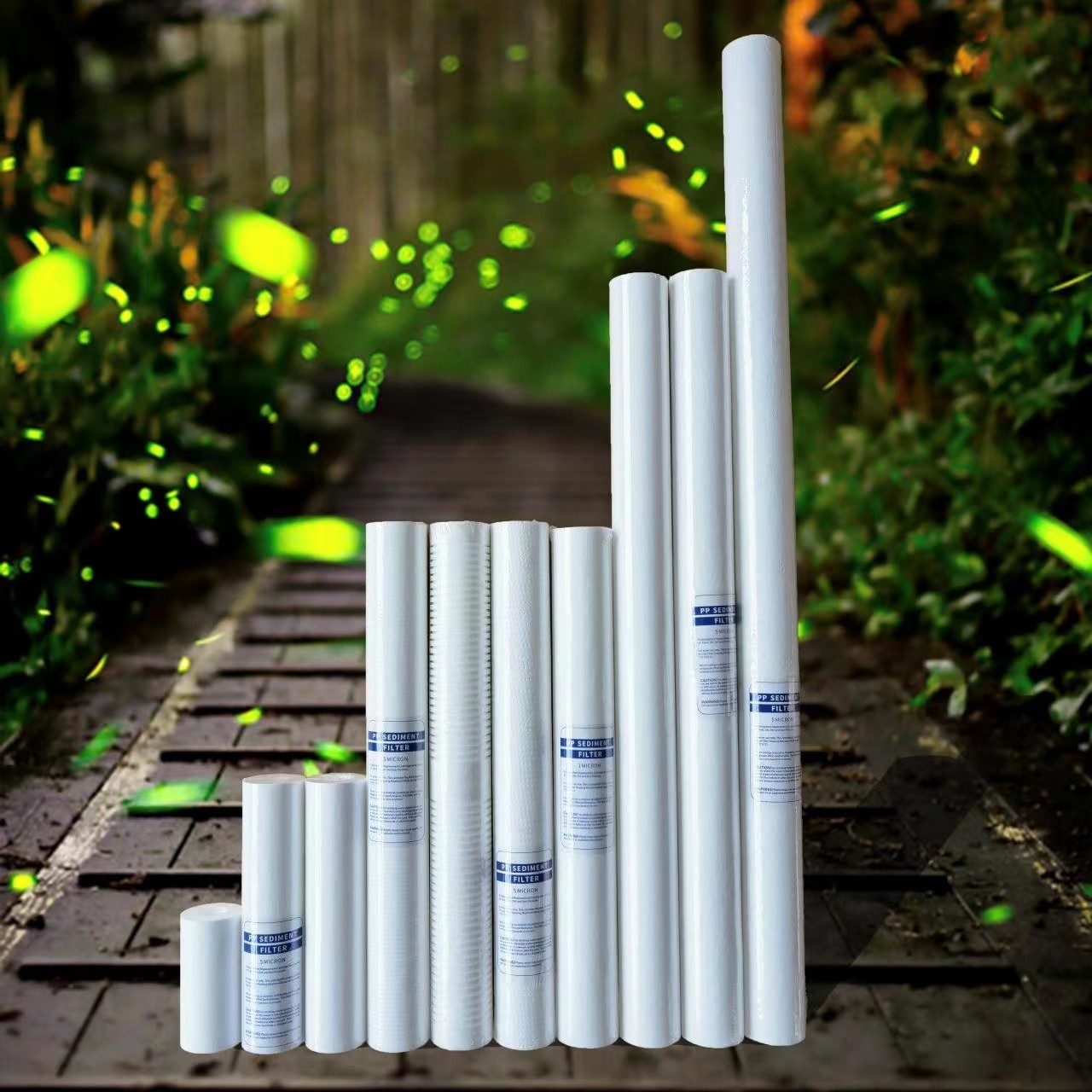

9.75", 9.87", 10", 20", 30", 40"

Performance

Max. Operating Temperature

65℃

Max. Operating DP

2.0Bar@21℃


Feature

PP Spun Melt Blown Sediment Water Treatment Filter Cartridge, PP cartridge elements is fused and intertwined of polypropylene resin without any chemical glues. The cartridge is glued at random to form 3D micro pore which will make the cartridge 3 layers with fibers in surface and inside.

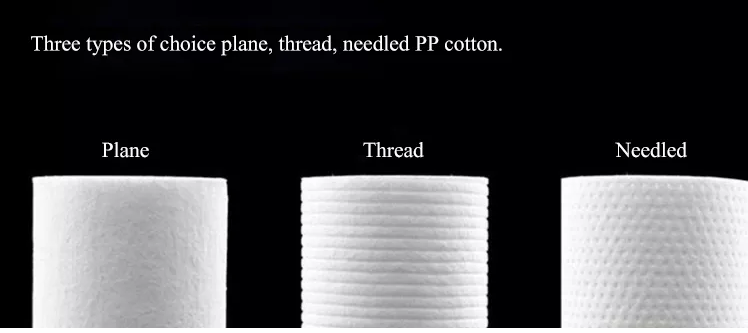

Series

Feature & Benefit

Blank

Smooth Surface-No Fiber Shedding, Graded Density Pore Structure

DG

Deep Groove-Bigger Filtration Area , High Flow & Dirt Holding Capacity

MG

Minigroove-Tight Fiber Construction and High Filtration Efficiency

H

Coarse Surface-Strong Mechanical Performance and High Pressure Resistant


PP Spun Melt Blown Cartridge.jpg

Application


•   R.O.Pre-filtration •   Food and Beverage •   Industry Water, Plating Solution •   Chemical, Organic Solvent Filtration •   Microelectronics


Package
