PP pleated filter cartridge for water treatment

PP pleated filter cartridge for water treatment

[ Product Description ]

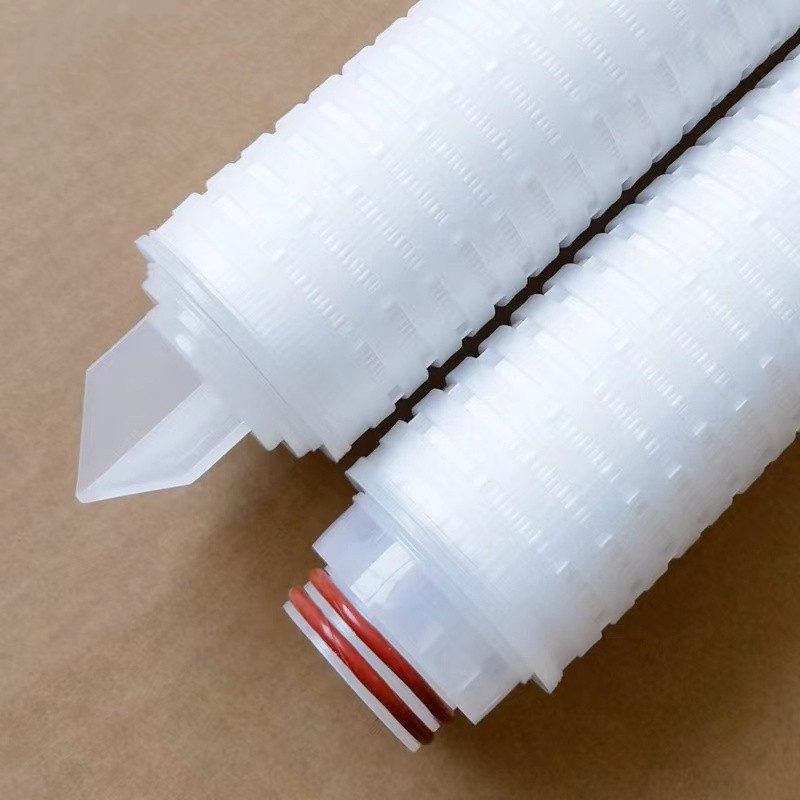

PP pleated filter cartridge is made of ultra-fine PP fiber membrane and non-woven fabric or wire mesh, inner and outer support layers by pleating.

The cage, core and end cap are fabricated by thermal bond technology. It contains no adhesive, no leakage and no secondary pollution.

The pleated design offers a large membrane filter area, high dirt holding capability, low differential pressure and long service life. The whole filter

cartridge is made of 100% pure PP to offer a wide range of chemical compatibility.

[ Advantages ]

Pure PP filter material complies with FDA standards.

Wide range of chemical compatibility, pH 1–14 resistance, high flow, low differential pressure and long service life.

Wide range of filter ratings for your option to meet the demands of various applications.

Thermal bond technology, firm structure and no foreign matter release.

The filter cartridge can be cleaned by common physical and chemical methods.

It can be sterilized in high pressure disinfection cabinet and by online steam.

[ Application ]

● Pharmaceuticals: medical, biological, cell and blood products filtration.

● Chemicals: organic solvent and ink filtration.

● Electronics: reverse osmosis water system prefiltration, deionized water system prefiltration.

● Food: drinking water, beer, beverage and mineral water filtration.

● Gas filtration: compressed air, nitrogen and carbon dioxide filtration.

● Others: Filtration of electroplating fluids, metal cutting fluids, photoresist and magnetic

 media, etc.

Filter rating 0.1, 0.22, 0.45, 1, 3, 5, 10, 20, 30, 50 μm

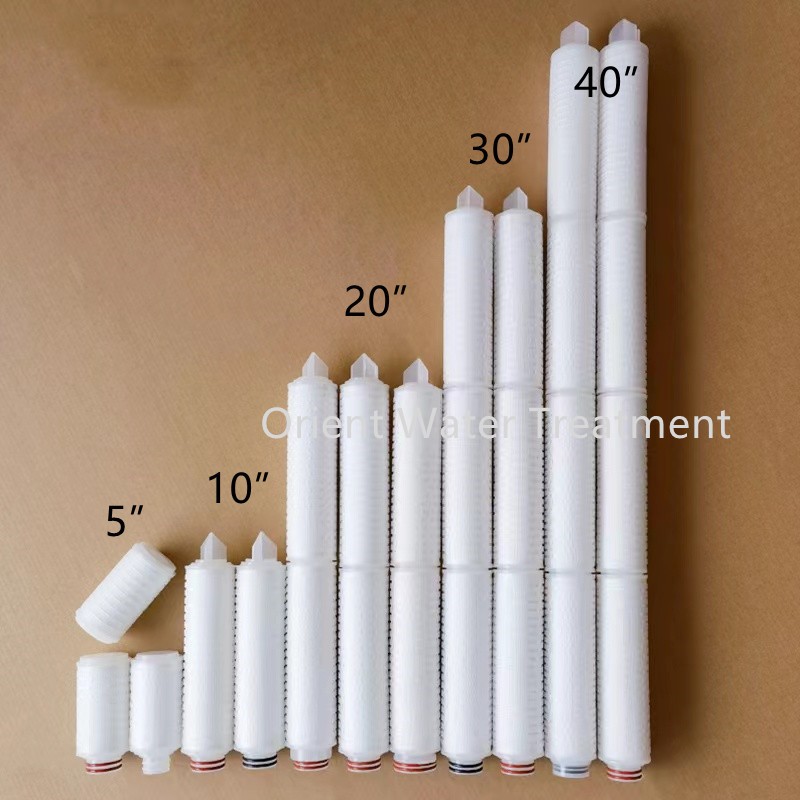

Length 5", 10", 20", 30", 40"

Diameter OD: φ69 mm; ID: φ28 mm

Regular size 5" 10" 20" 30" 40"

Connection type 215 222 226 M30 M36
